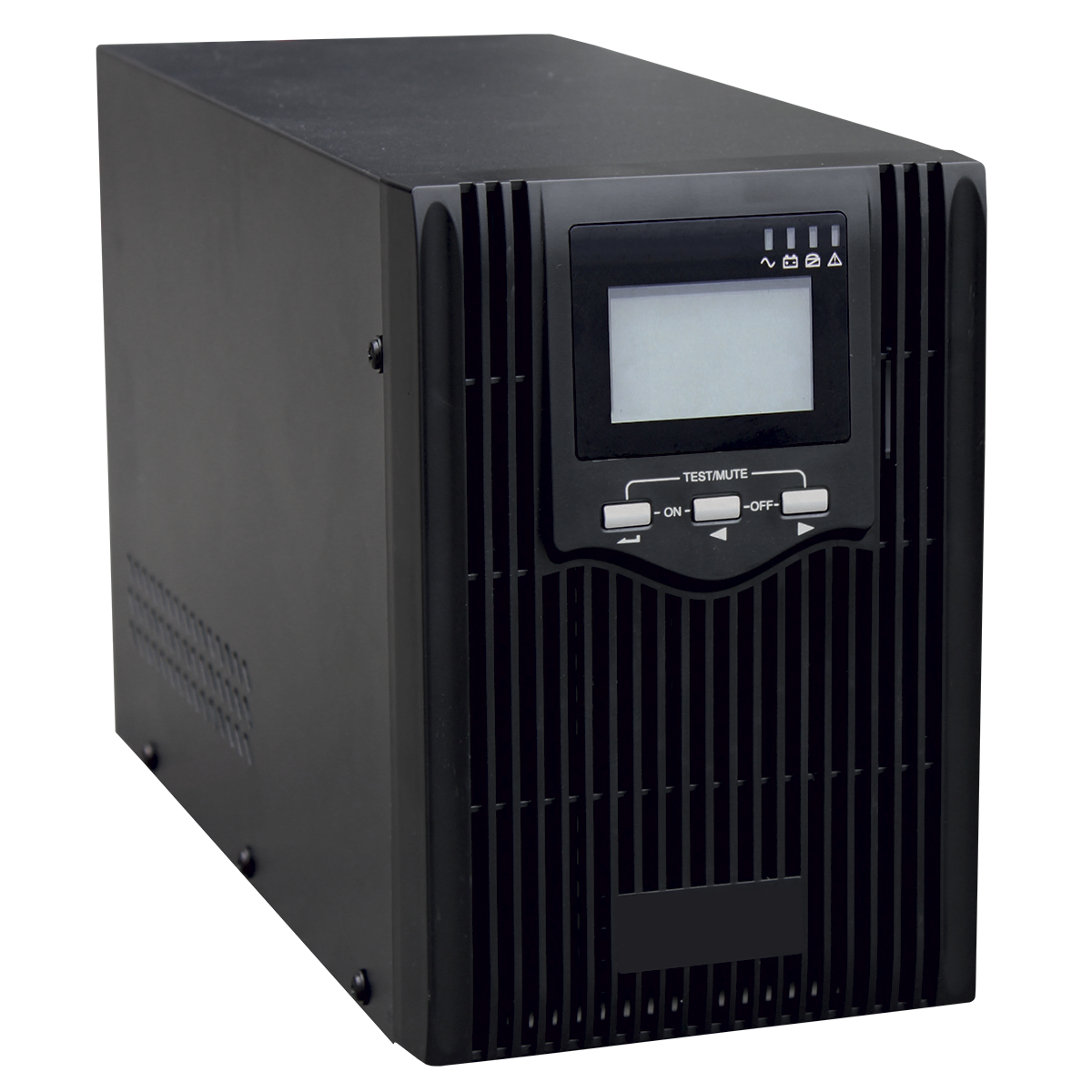

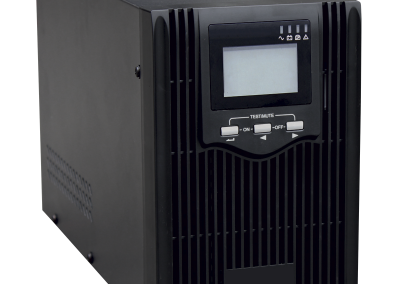

UPS – Uninterruptible Power Supply
UPS-2000VA
UPS-2000VA-01
Model Number: 2000VA
| Power: | 1600W | |
| Noise: | <50db (1 metre) | |
| Temperature: | 0 – 40°C | |
| Humidity: | 10% – 90% | |
| Input – Phase: | Single & GND | |
| Input – Voltage Range | 230 / 240VAC | |
| Input – Frequency | 50 / 60Hz ± 10% (Auto-Sense) | |
| Output – Voltage Range | 230 / 240VAC | |
| Output – Wave Form: | Pure Sine Wave | |
| Output – Frequency: | 50 / 60Hz ± 0.3Hz (Auto-Sense & Settable) | |
| Output – Efficiency: | Max 98% (AC mode) Max 85% (Linear Load) | |
| Output – Transfer Time: | 8ms | |
| Protection – Overload (AC Mode): | 105% | |
| Protection – Overload (Inverter Mode): | EN62040-2:2006 EB62040-1L2008+A1:2013 | |
| Protection LAN: | RJ45 Surge Protection | |
| Noise Filtering – EMI / RFI: | Full time suppression | |
| Communication: | USB (RS232 / SNMP (Optional) | |

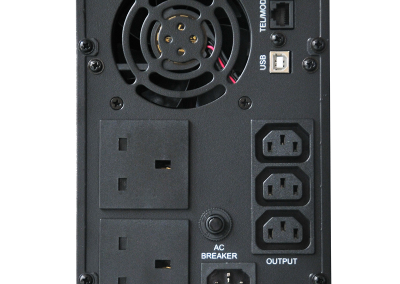

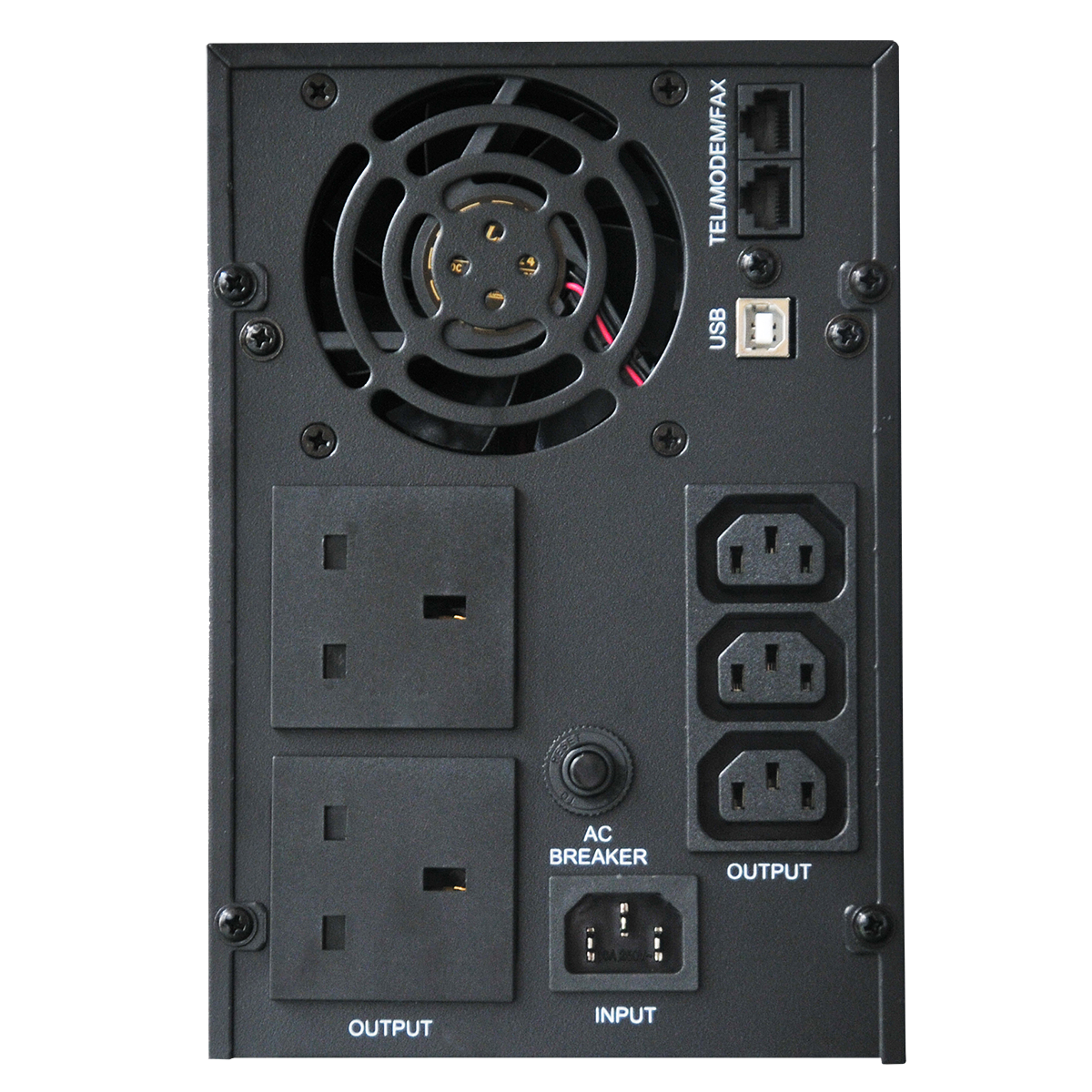

| I/O Ports – UK Mains Socket: | 2 pcs UK Sockets | |
| I/O Ports – RJ45: | 2 x RJ45 | |
| I/O Ports – USB: | 1 x USB | |
| I/O Ports – IEC Socket: | 3 X IEC Sockets | |
| Battery – Type: | Sealed Lead-acid maintenance free | |
| Battery – Qty: | 12V9Ah x 3 | |
| Battery – Recharge Time: | 90% capacity after 8 hours | |
| Battery – Backup Time: | 10-30 minutes (dependent on load) | |
| Unit Dimensions (mm): | 104mm x 201mm x 407mm (W x H x D) | |
| Net Weight (KGs): | 11.7 KGs | |
| Gross Weight (KGs): | 17.4 KGs | |
About Meredian
Meredian is located in Causeway Bay, Hong Kong. The factory special in computer chassis, power supply and computer peripheral equipment design, manufacture. Established to offer DIY Pc builders great hardware and design our team works hard on R&D to keep offering update designs that you will love. Products are exported all over Asia and Europe through sales channels built up over many many years in the industry. We work with our customers to give them ideal product in quantities right for them.
