UPS – Uninterruptible Power Supply
UPS-1000VA
UPS-1000VA-01
Model Number: 1000VA
| Power: | 600W | |
| Noise: | <45db (1 metre) | |
| Temperature: | 0 – 40°C | |
| Humidity: | 20% – 90% (Non-condensing) | |
| Input – Phase: | Single & GND | |
| Input – Voltage Range | 230 / 240VAC | |
| Input – Frequency | 50Hz ± 10% | |
| Output – Voltage Range | 230 / 240VAC | |
| Output – Wave Form | Sine Wave (AC Mode) Square Wave (Inverter) | |
| Output – Frequency: | 50Hz ± 1% (Battery Mode) | |
| Output – Crest Factor: | 3:1 | |
| Output – Transfer Time: | <= 6ms | |
| Protection – Energy Rating: | 320 Joules instantaneous response | |
| Protection Test Standard: | IEEE 587 Cat. A & B | |
| Protection – LAN: | RJ45 Surge protection | |
| Noise Filtering – EMI / RFI: | Full time suppression | |
| Communication: | USB | |

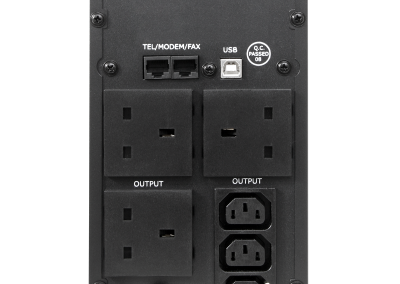

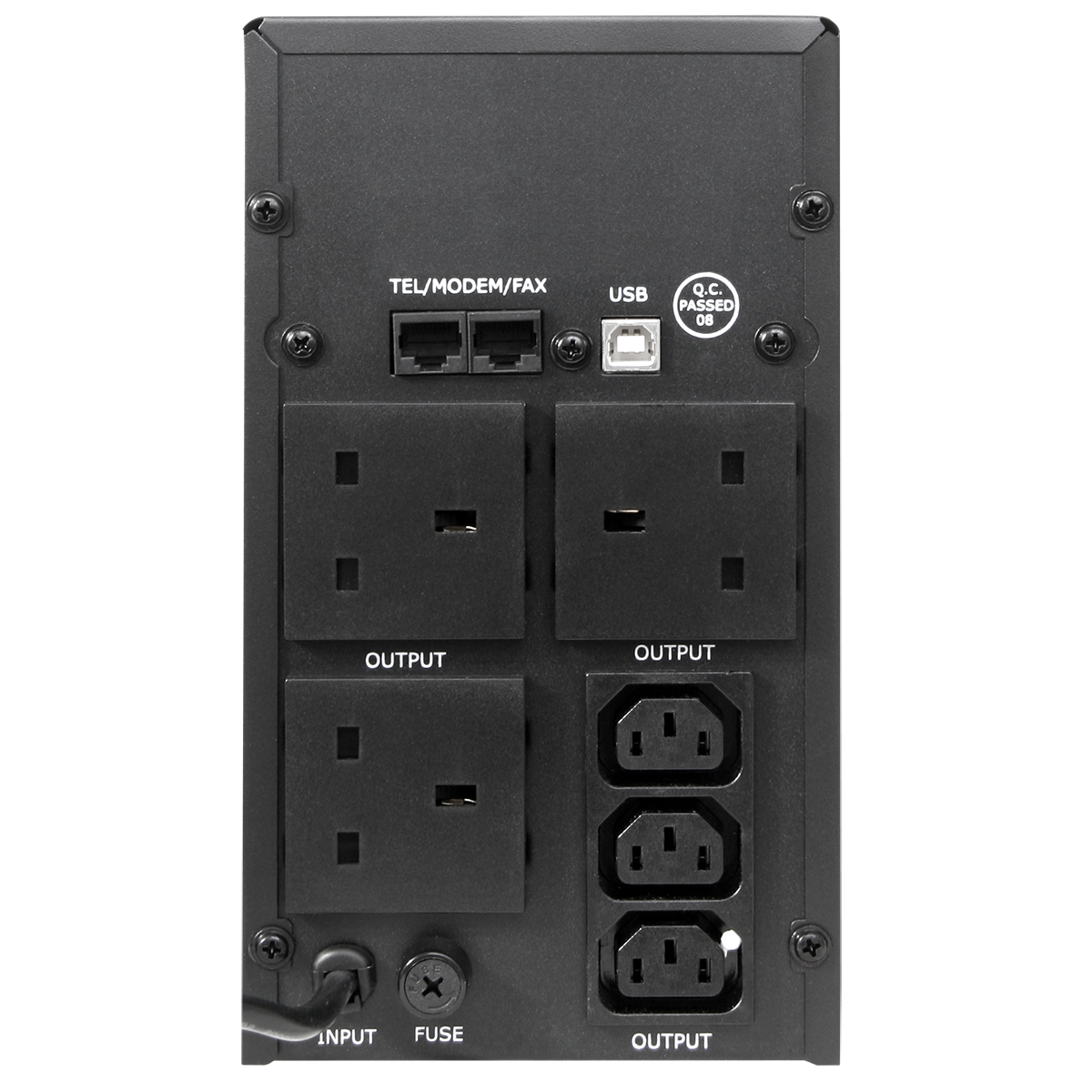

| I/O Ports – UK Mains Socket: | Three | |
| I/O Ports – RJ45: | Two (In / Out) | |
| I/O Ports – USB: | One (For USB Monitoring) | |
| I/O Ports – IEC Socket | Three | |
| Battery – Type: | Sealed Lead-acid maintenance free | |
| Battery – Qty: | 12V7AH x 2 | |
| Battery – Recharge Time: | 90% capacity after 8 hours | |
| Battery – Backup Time: | 15-20 minutes (dependent on load) | |
| Unit Dimensions (mm): | 125mm x 230mm x 340mm (W x H x D) | |
| Net Weight (KGs): | 10.9 KGs | |
| Gross Weight (KGs): | 11.6 KGs | |
