Corporate Case
S701BK
S701BK-01
S701BK-02
S701BK-03

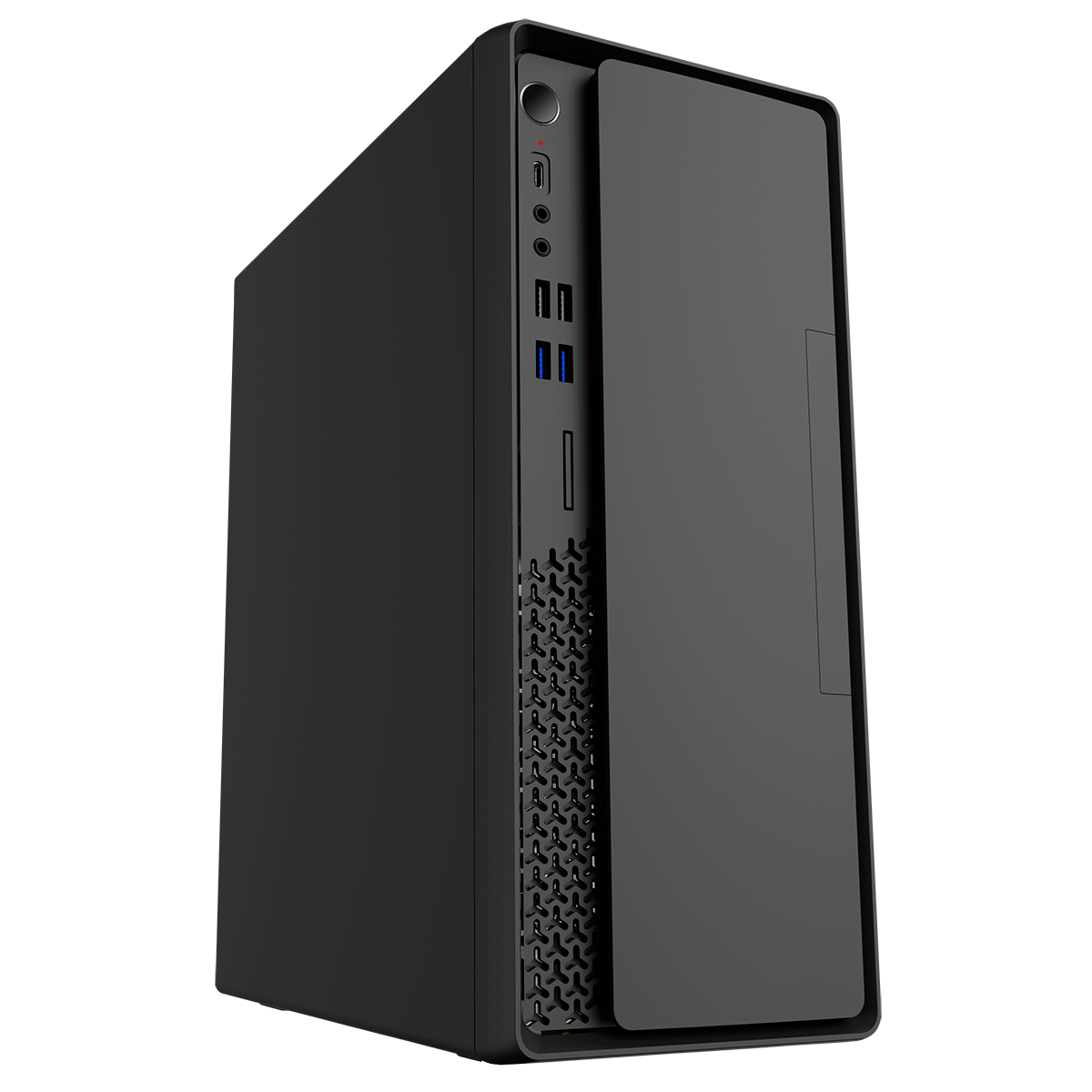

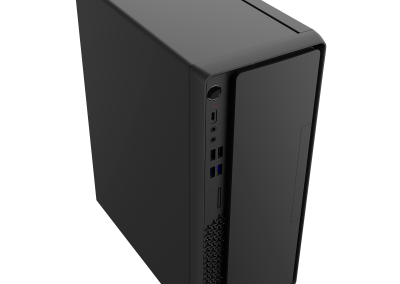

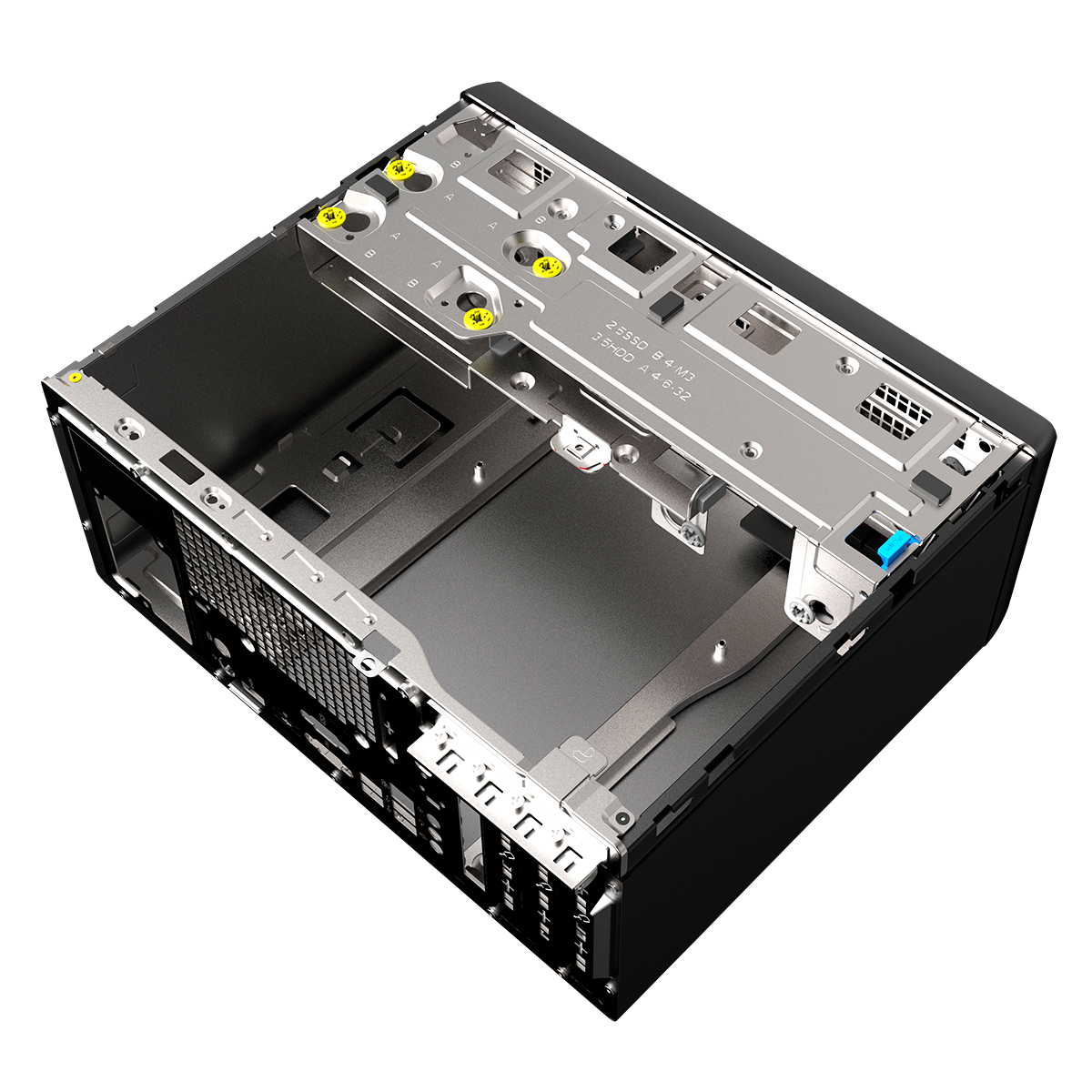

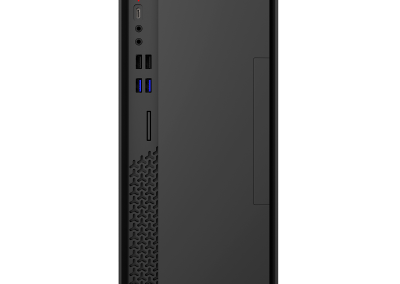

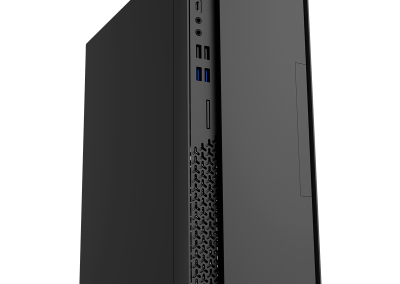

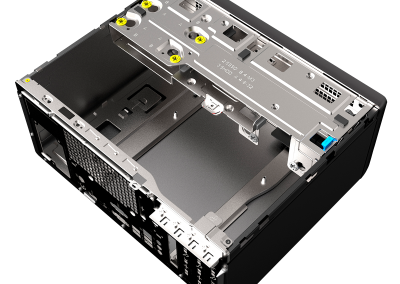

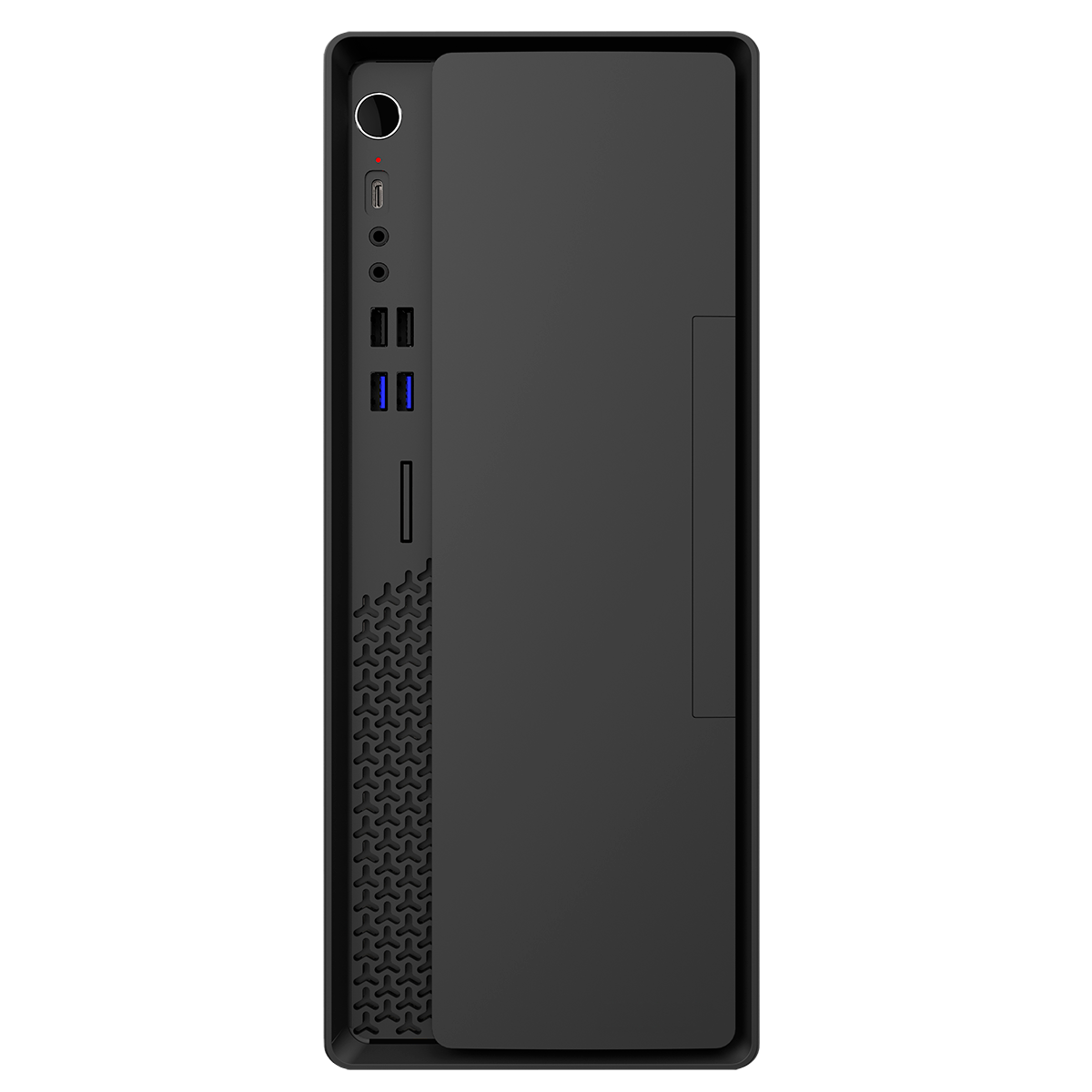

Model Number: S701BK (15L)
| Front Panel: | ABS | |
| Left Side / Top Panel: | Steel Vented | |
| Right Side Panel: | Steel | |
| Chassis: | SGCC 0.8mm | |
| Front I/O | USB 3.1 Type C x 1 USB3.0 x 2 USB2.0 x 2 HD Audio x 1 Microphone x 1 |
|
| PSU Position/Type | Bottom / TFXs PSUs | |
| Motherboard Type | Micro ATX, Mini ITX | |
| Reserved Fan Ports: (optional) | Front: None | |
| Rear: 1 x 80mm Fan | ||
| Top: None | ||
| Side: None | ||
| Bottom: None | ||
| Drive Bays: (1 x 2.5″ uses 1 x 3.5″ bay) |
1 x Slimline Optical | |
| 3.5” HDD x 1 | ||
| 2.5” SSD x 2 | ||
| PCI Expansion Slots: | x 4 Full Size | |
| Chassis Size: | L267*W145*H342 MM (Excluding Fascia / Panels) L292*W145*H342 MM (Including Fascia / Panels) |
|
| N.W.; | 3.5KGS | |
| G.W.: | 4.2KGS | |
| Max.VGA Card: | 250mm | |
| Max. CPU Cooler: | 115mm | |
| Water cooling: | Not Water Cooling Ready | |
| In The Box: | Case Accessories |
|
