Corporate Case

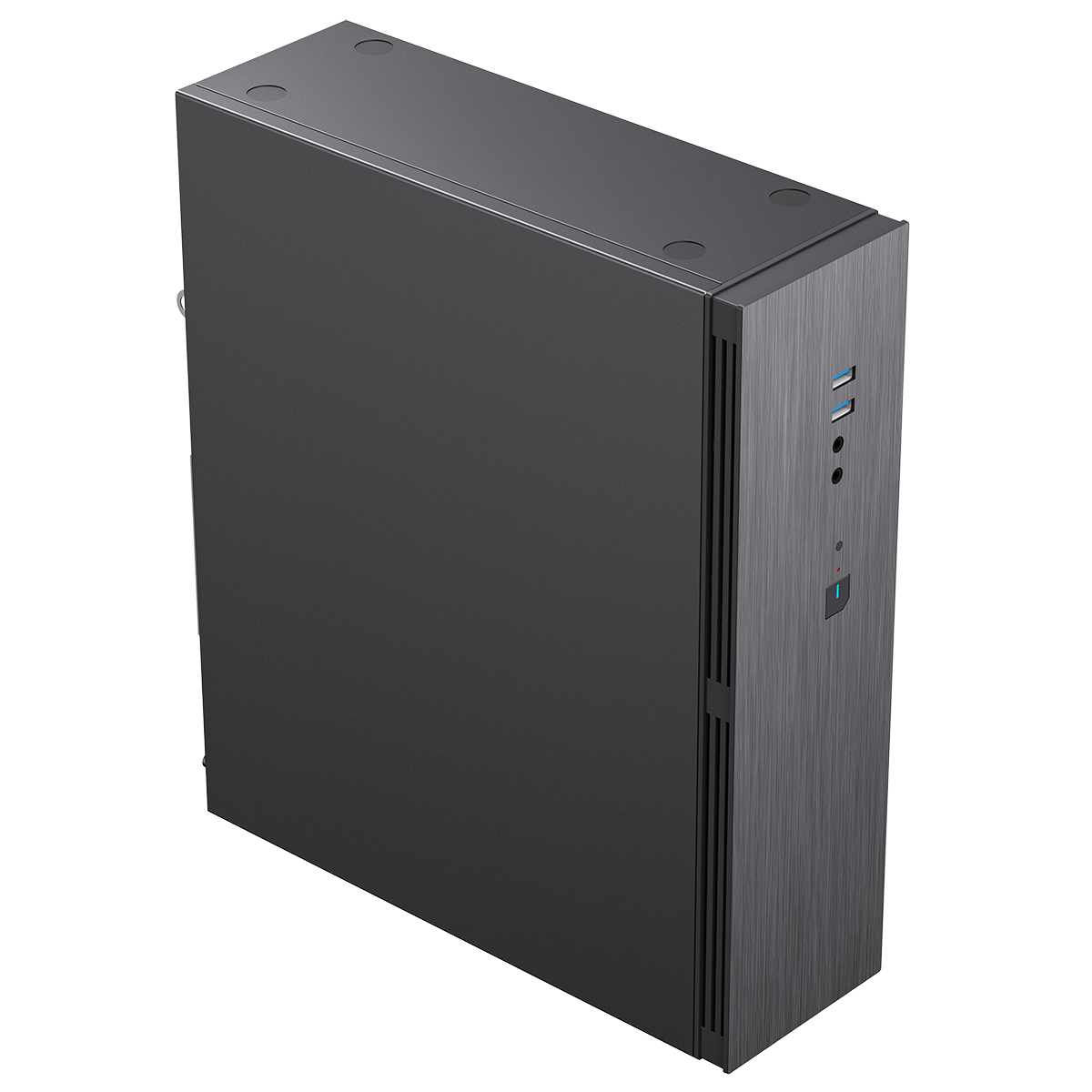

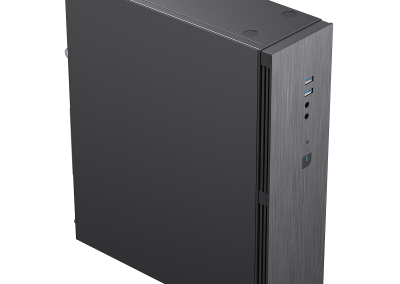

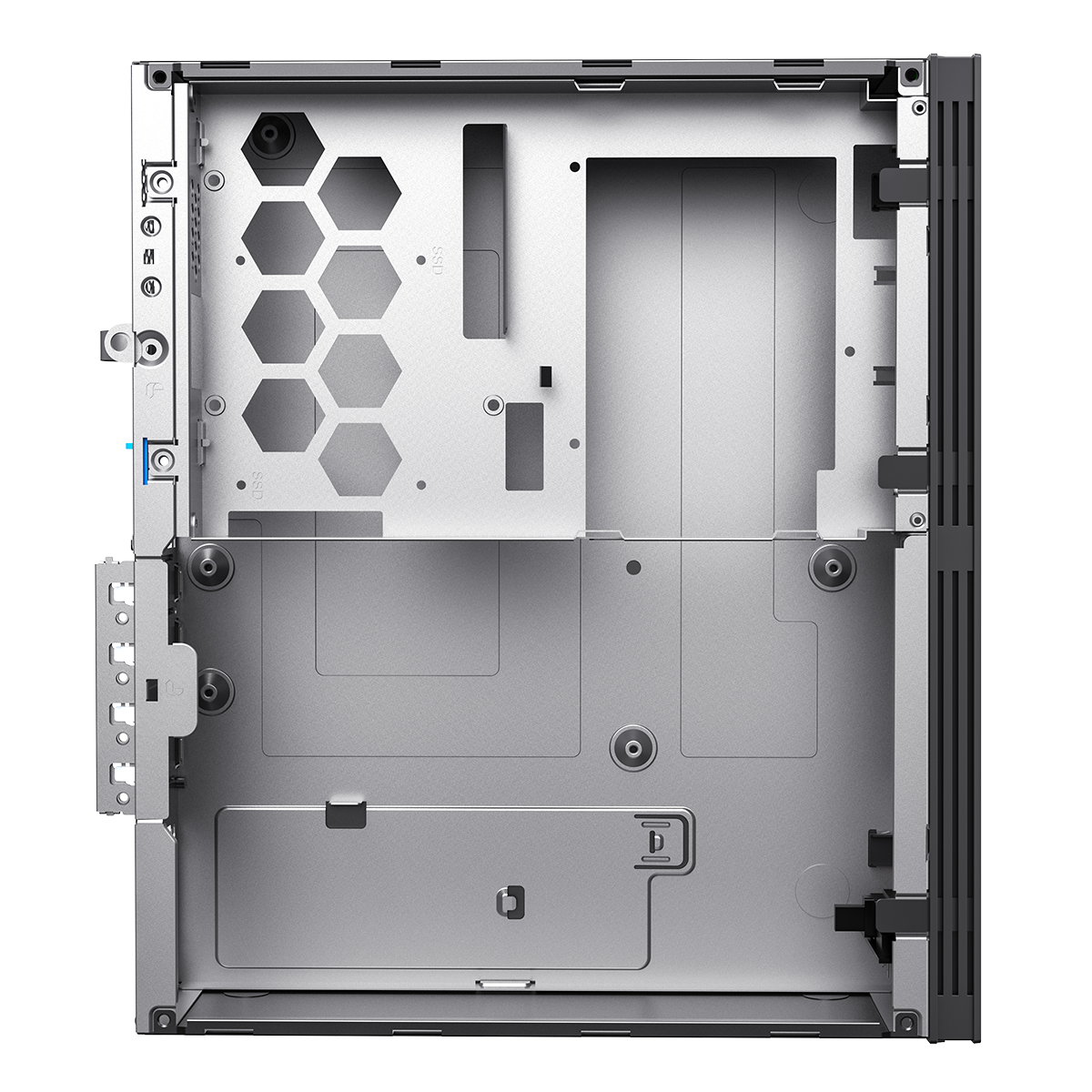

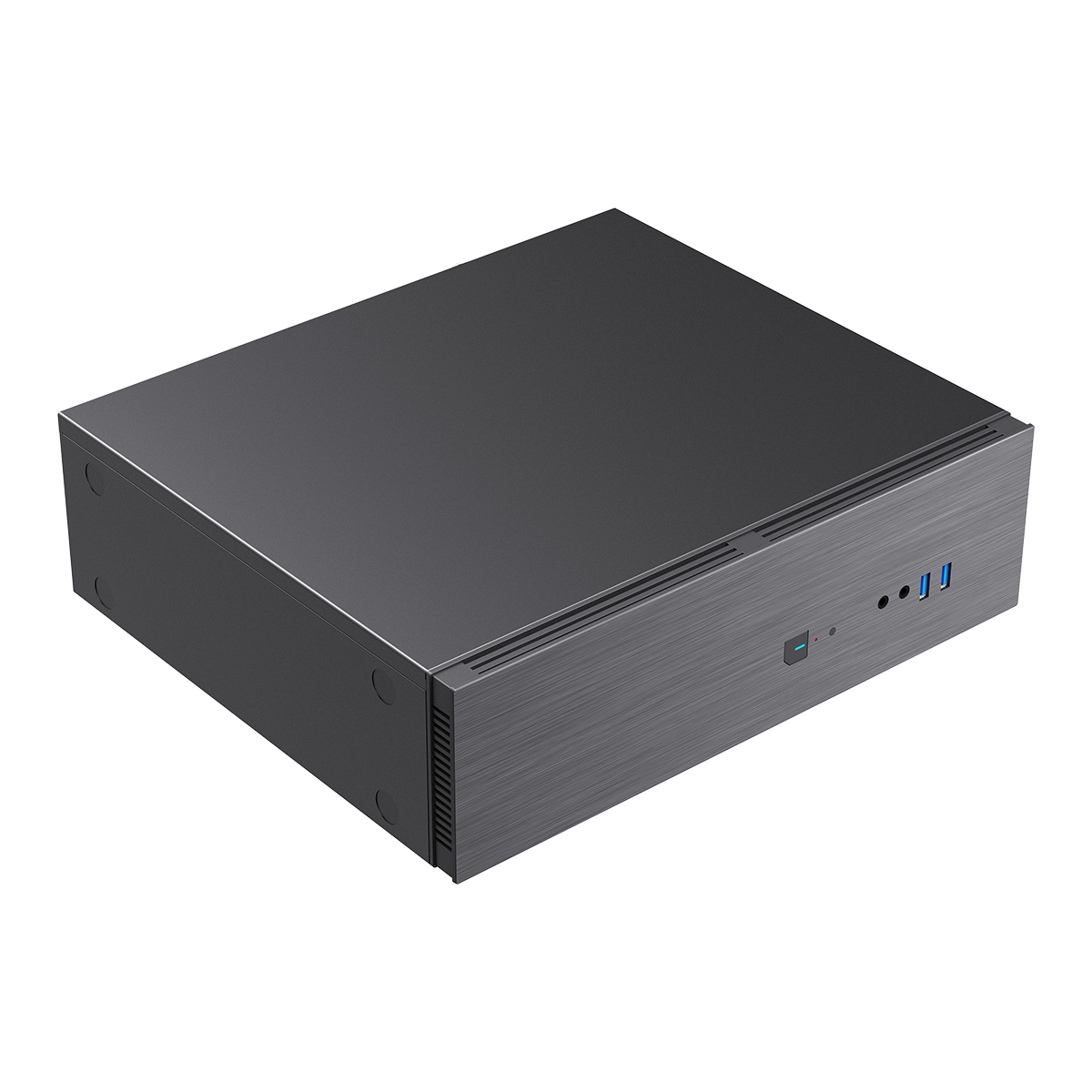

Model Number: S337 (8.3L)

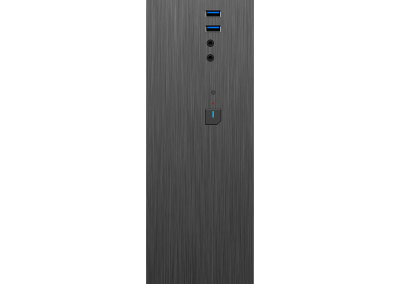

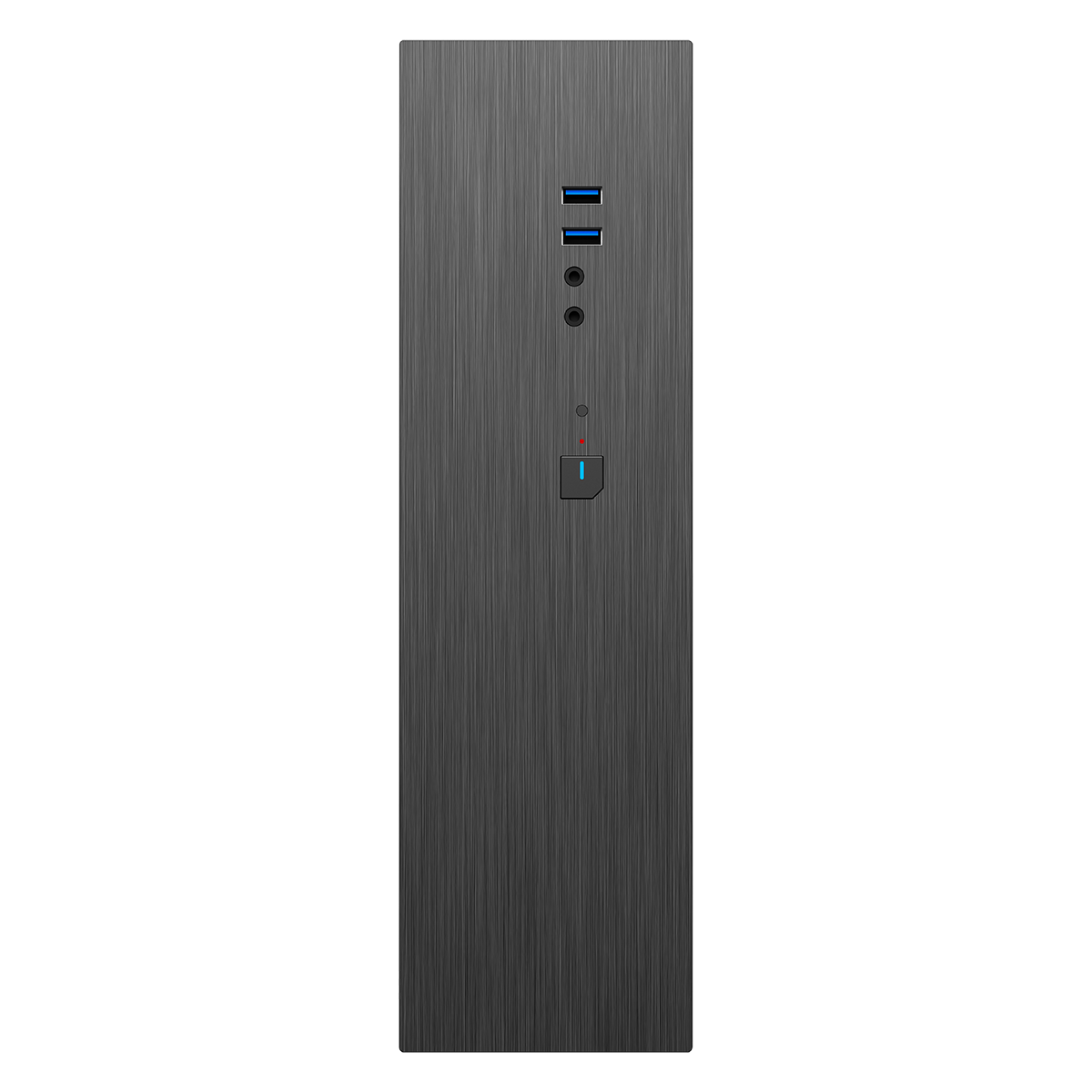

Front Panel: Brushed Aluminium with Airflow Vents

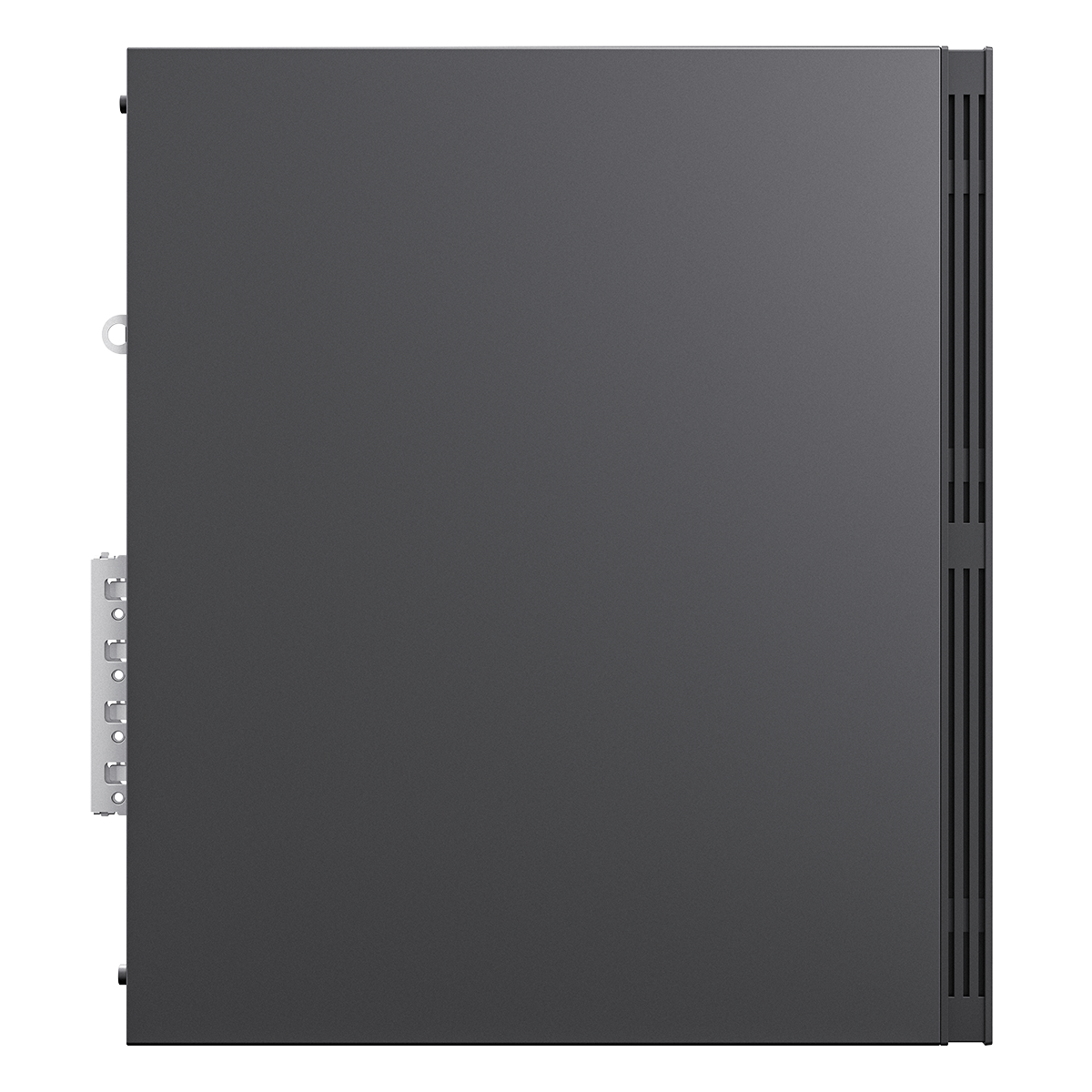

Left Side / Top Panel: Steel
Right Side / Bottom Panel: Steel
Chassis: SGCC 0.6mm
Front I/O: USB2.0 x up to 2 (without USB 3.0)

USB3.0 x up to 2 (optional, each use a USB2.0 slot)
USB Type-C N/A
HD Audio x 1
Microphone x 1

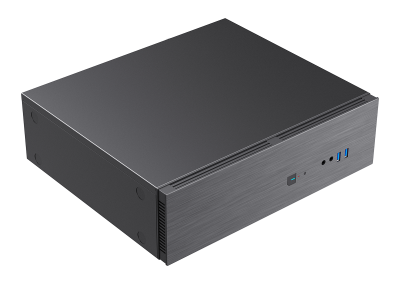

PSU Position/Type: Left (Desktop) / Bottom (Tower) / TFX PSU
PSU: TFX series 200W to 300W (Nomal Efficiency)

TFX series 200W to 300W (APFC, 80+ PLUS Bronze version)

Motherboard Type: Micro ATX (Max 244*244mm), Mini ITX
Reserved Fan Ports: (optional) Front: 1 x 80mm Black 3-Pin Fan
or: 1 x 80mm PWM Fan
Rear: None
Top: None
Side: None
Bottom: None

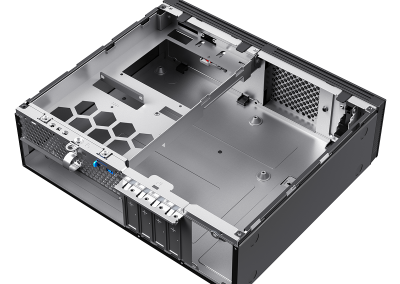

Drive Bays: ODD exposed    x 0
3.5”   exposed    x 0
3.5”   HDD          x 1 (Tool-less design)
2.5”   SSD          x  1 (Tool-less design)

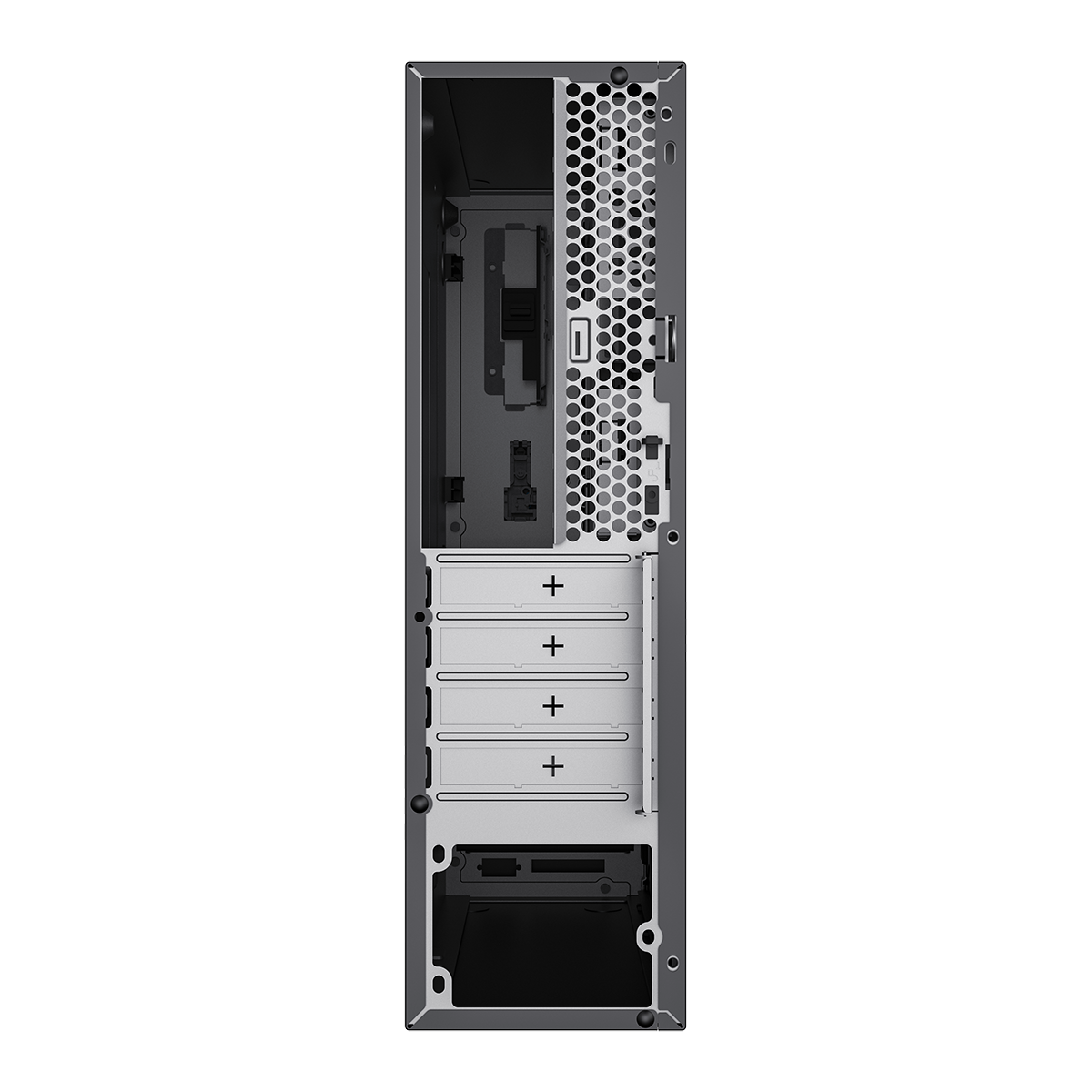

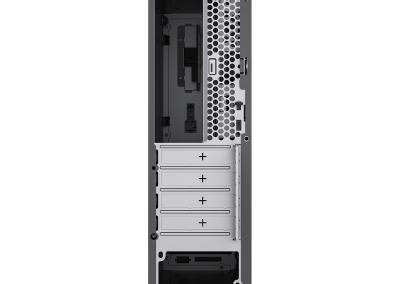

PCI Expansion Slots: 4 x Half Height / Low Profile Slots
Chassis Size: 327 x 95 x 266mm(8.3L)W/O Front Panel

327 x 95 x 283mm(8.8L)With Front Panel

Max.VGA Card: Up to 220mm
Max. CPU Cooler: Up to 50 mm
Security/Internal SPK (Optional): Padlock Loop / Kensington Slot (Included)

Chassis Intrusion Switch / Internal Speaker (Optional)
