UPS – Uninterruptible Power Supply

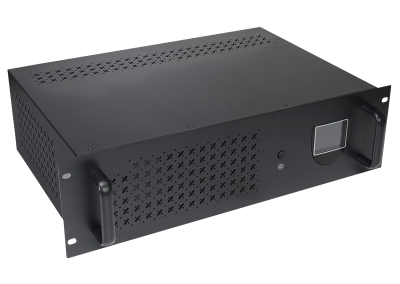

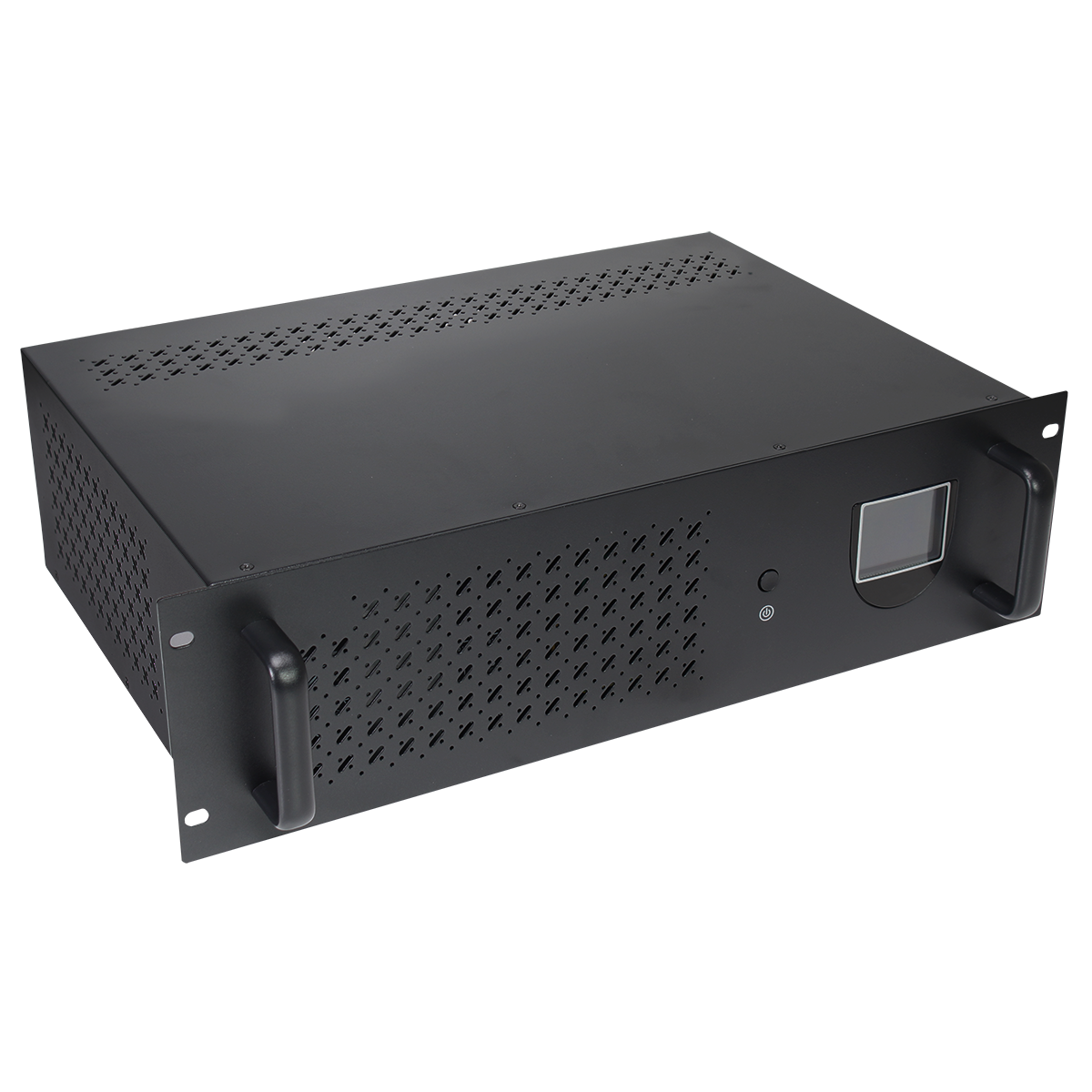

UPS-RACK-1200VA

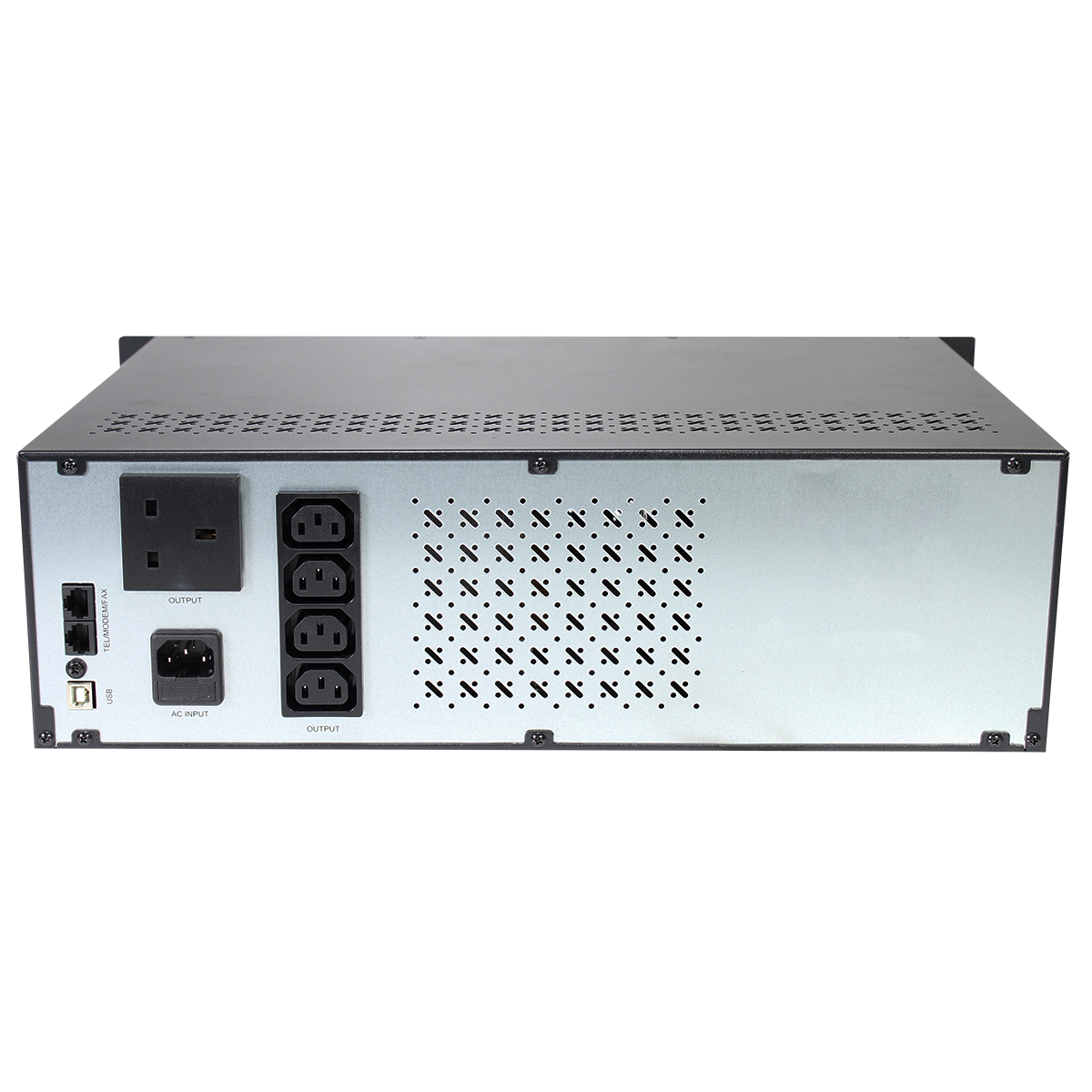

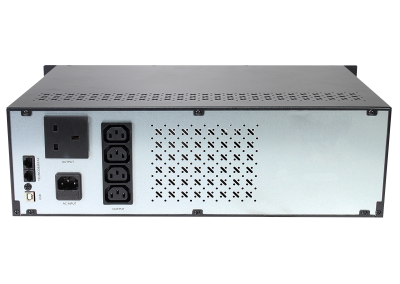

UPS-RACK-1200VA-01
Model Number: RACK 1200VA
| Power: | 720W | |
| Rack Height: | 3U | |
| Noise: | <45db (1 metre) | |
| Temperature: | 0 – 40°C | |
| Humidity: | 20% – 90% (Non-condensing) | |
| Input – Phase: | Single & GND | |
| Input – Voltage Range: | 162 – 295VAC | |
| Input Frequency: | 50 / 60Hz ± 10% | |
| Output – Voltage Range: | 230VAC+/-10% | |
| Output – Wave Form: | Sine Wave (AC Mode) Square Wave (Inverter) | |
| Output Frequency: | 50 / 60Hz ± 1% (Battery Mode) | |
| Output – Crest Factor: | 3:1 | |
| Output Transfer Time: | <= 6ms | |
| Protection Energy Rating: | 320 Joules instantaneous response | |
| Protection Test Standard: | IEEE 587 Cat. A & B | |
| Protection LAN: | RJ45 Surge protection | |
| Noise Filtering EMI / RFI: | Full time suppression | |
| Input Plug: | 1 x Mains Plug | |
| Output Socket: | 1 x Mains Socket + 4 x IEC 320 C13 | |
| Tel / Modam: | 2 x RJ45 | |
| Interface: | 1 x USB | |
| Battery – Type: | Sealed Lead-acid maintenance free | |
| Battery – Qty: | 12V7AH x 2 | |
| Battery – Recharge Time: | 90% capacity after 8 hours | |
| Battery – Backup Time: | 15-20 minutes (dependent on load) | |
| Unit Width (Inc. Brackets): | 483mm | |
| Unit Depth (Inc. Handles): | 350mm | |
| Packaging Type: | EPE Foam | |
| EPE Foam (Thickness): | 40.55mm | |
| Unit Dimensions (mm): | 438mm x 132mm x 312mm (W x H x D) | |
| Net Weight (KGs): | 12.2 KGs | |
| Gross Weight (KGs): | 13.4 KGs | |
