Case
Model Number: A7271
| Unit Price: (FOB SZ) | US$28.00 | |
| Front Panel: | ABS + ARGB strip | |
| Left Side Panel: | Tempered glasses | |
| Right Side Panel: | steel | |
| Chassis: | SPCC 0.6mm, Black interior | |
| Front I/O | USB3.0 x 1 + USB2.0 x 1 + HD audio | |
| PSU Position/Type |
|
|
| Motherboard Type | ATX / M ATX/ | |
| Reserved Fan Ports: | Front: 3 x 120mm/140mm x 2 (Optional) | |
| Rear: 1 x 120 (Optional) | ||
| Front: 3 x 120mm/140mm x 2 (Optional) | ||
| Drive Bays: | 5.25” exposed x 0 | |
| 3.5” exposed x 0 | ||
| 3.5” HDD x 2 | ||
| 2.5” SSD x 2 | ||
| PCI Expansion Slots: | x 7 | |
| Chassis Size: | 492 x 200 x 466.5 | |
| Box Size: | 509 x 273 x 540 | |
| N.W.; | 7.3kgs | |
| G.W.: | 8.9kgs | |
| Max.VGA Card: | 390 mm | |
| Max. CPU Cooler: | 160 mm | |
| Water cooling: | Rear: Support up to 120radiator | |
| TOP: Support up to 240 mm radiator | ||
| Front: Support up to 240/360 mm radiator | ||
| Cable Management: | 30 mm | |
| Packaging | EPE + brown box | |
| Container Quantity: | ||
| MOQ | 300 pcs |
| Upgrade Options | ||||
| Item | Images | Specs | Quantity | Price |
| Fans to connect to ARGB Hub 6F2L | ||||

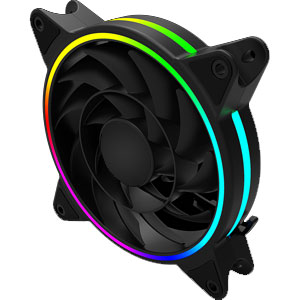

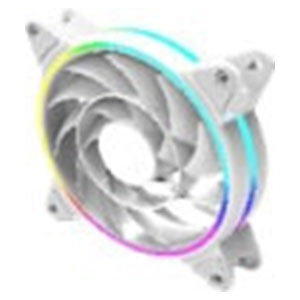

| Slim ARGB BAK-30AP OEM Version |
 |
Hydro bearing fan with slim loop 3 pin ARGB female & male External dimensions 120 x 120 x 25mm Rated Speed 1500±15% RPM with rubber |
$ 3.00 | |
| Slim ARGB BAK-30WAP OEM Version |
 |
Hydro bearing fan with slim loop 3 pin ARGB female & male External dimensions 120 x 120 x 25mm Rated Speed 1500±15% RPM with rubber |
$ 3.20 | |

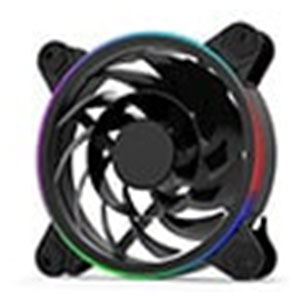

| Slim ARGB KAB-10 |
 |
Hydro bearing fan with slim loop 3 pin ARGB female External dimensions 120 x 120 x 25mm Rated Speed 1500±15% RPM with rubber |
$ 3.20 | |
| Slim ARGB BAK-20 |
 |
Hydro bearing fan with slim loop 3 pin ARGB female External dimensions 120 x 120 x 25mm Rated Speed 1500±15% RPM with rubber |
$ 3.20 | |

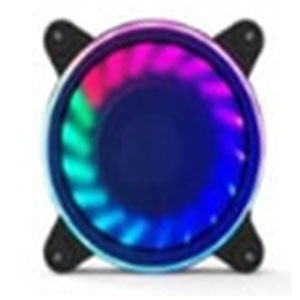

| Dual Ring ARGB BAK-50 OEM Version |
 |
Hydro bearing fan 3pin ARGB female and male / molex External dimensions 120 x 120 x 25mm Rated Speed 1200±15% RPM with rubber |
$ 3.45 | |
| Slim ARGB BAK-30AP Retail Version |
 |
Hydro bearing fan with slim loop 3 pin ARGB female & male / molex External dimensions 120 x 120 x 25mm Rated Speed 1500±15% RPM with rubber |
$ 3.30 | |
| Slim ARGB BAK-30WAP Retail Version |
|
Hydro bearing fan with slim loop 3 pin ARGB female & male / molex External dimensions 120 x 120 x 25mm Rated Speed 1500±15% RPM with rubber |
$ 3.50 | |

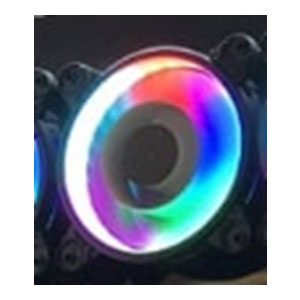

| Dual Ring ARGB BAK-50 Retail Version |
|
Hydro bearing fan 3pin ARGB female and male / molex External dimensions 120 x 120 x 25mm Rated Speed 1200±15% RPM with rubber |
$ 3.75 | |

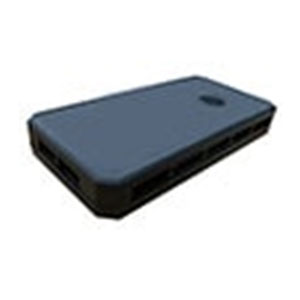

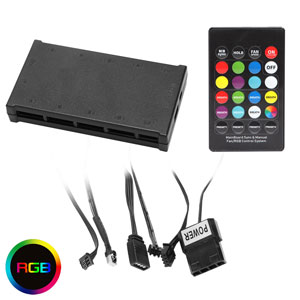

| ARGB Hub 6F2L |  |
6 fan port & 2 LED port RF controller (optional) 3 pin ARGB MB header / 3 pin power Reset Button / 30 modes PWM / SATA to power supply |
$ 3.50 | |

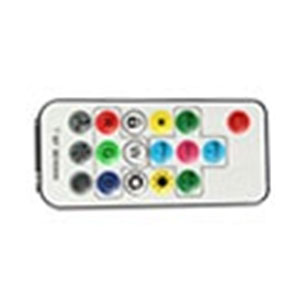

| ARGB Remote 6F2L |  |
Remote controller for ARGB fans | $ 0.50 | |
| Fans to connect to ARGB Hub 8F2L | ||||

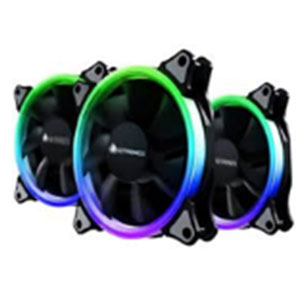

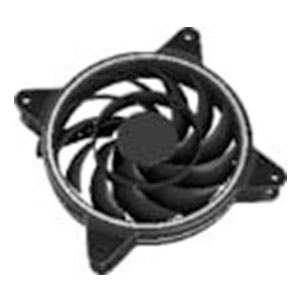

| Single Loop ARGB BAK-90 |
 |
Hydro bearing fan with slim loop 12 LED 6 pin / molex External dimensions 120 x 120 x 25mm Rated Speed 1200±15% RPM Life Expectancy 40,000 hours minimum |
$ 2.20 | |

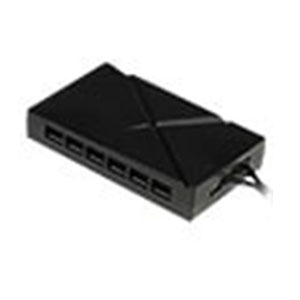

| ARGB Hub 8F2L |  |
8 fan & 2 LED port RF controller included ABS Cover Morex connector to power supply |
$ 3.00 | |
| Fans to connect to RGB Hub | ||||

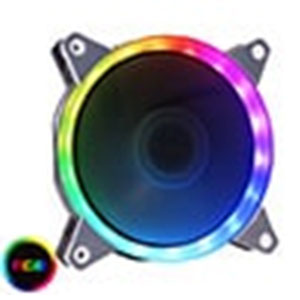

| Slim RGB BAK-30 |
 |
Hydro bearing with slim loop 3pin / 4 pin RGB External dimensions 120 x 120 x 25mm Rated Speed 1200±15% RPM with rubber |
$ 2.60 | |
| RGB Hub |  |
10 x 4 pin RGB header No RF | $ 2.50 | |
| Additional Options | ||||
| Rainbow Fan BAK-40 |
 |
Hydro bearing fan Molex External dimensions 120 x 120 x 25mm Rated Speed 1200±15% RPM with rubber |
$ 2.50 | |

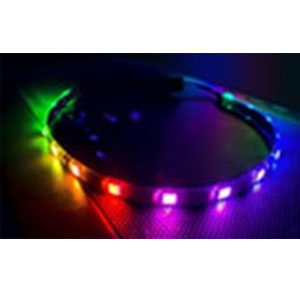

| LED strip OEM Version |
 |
15 LED 3 pin 4 magnets 350mm ARGB | $ 2.10 | |
| LED Strip Retail Version |
|
15 LED 3 pin 4 magnets 350mm ARGB | $ 2.30 | |
| Colour Box | Colour box for custom case | $ 1.50 | ||
About Meredian
Meredian is located in Causeway Bay, Hong Kong. The factory special in computer chassis, power supply and computer peripheral equipment design, manufacture. Established to offer DIY Pc builders great hardware and design our team works hard on R&D to keep offering update designs that you will love. Products are exported all over Asia and Europe through sales channels built up over many many years in the industry. We work with our customers to give them ideal product in quantities right for them.
