Gaming Case
SM-B
SM-B-01
SM-B-02
SM-B-03

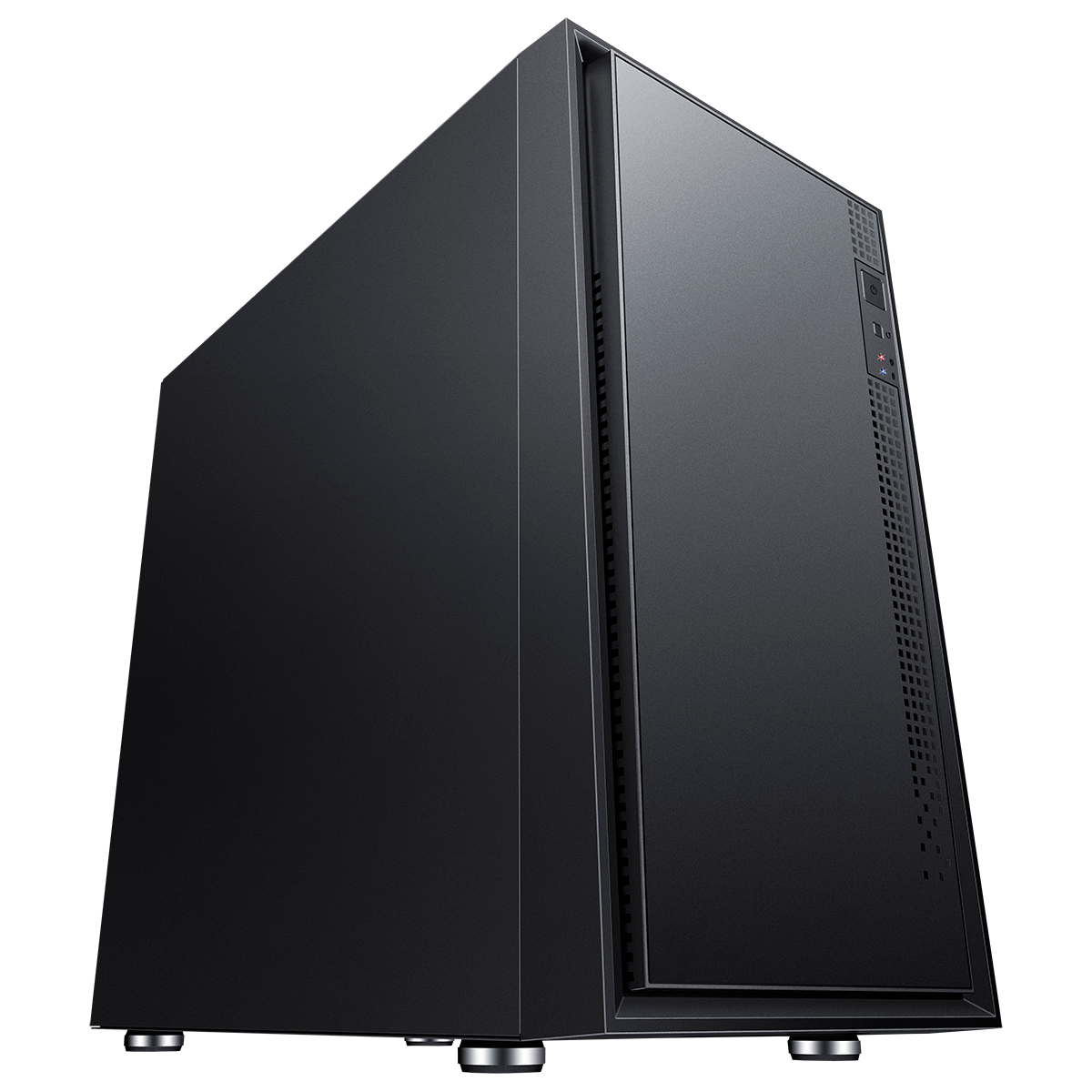

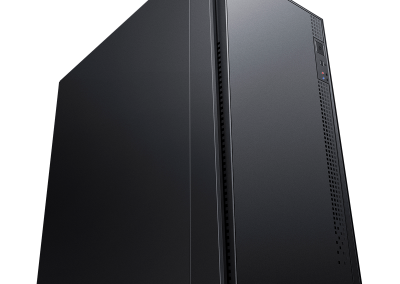

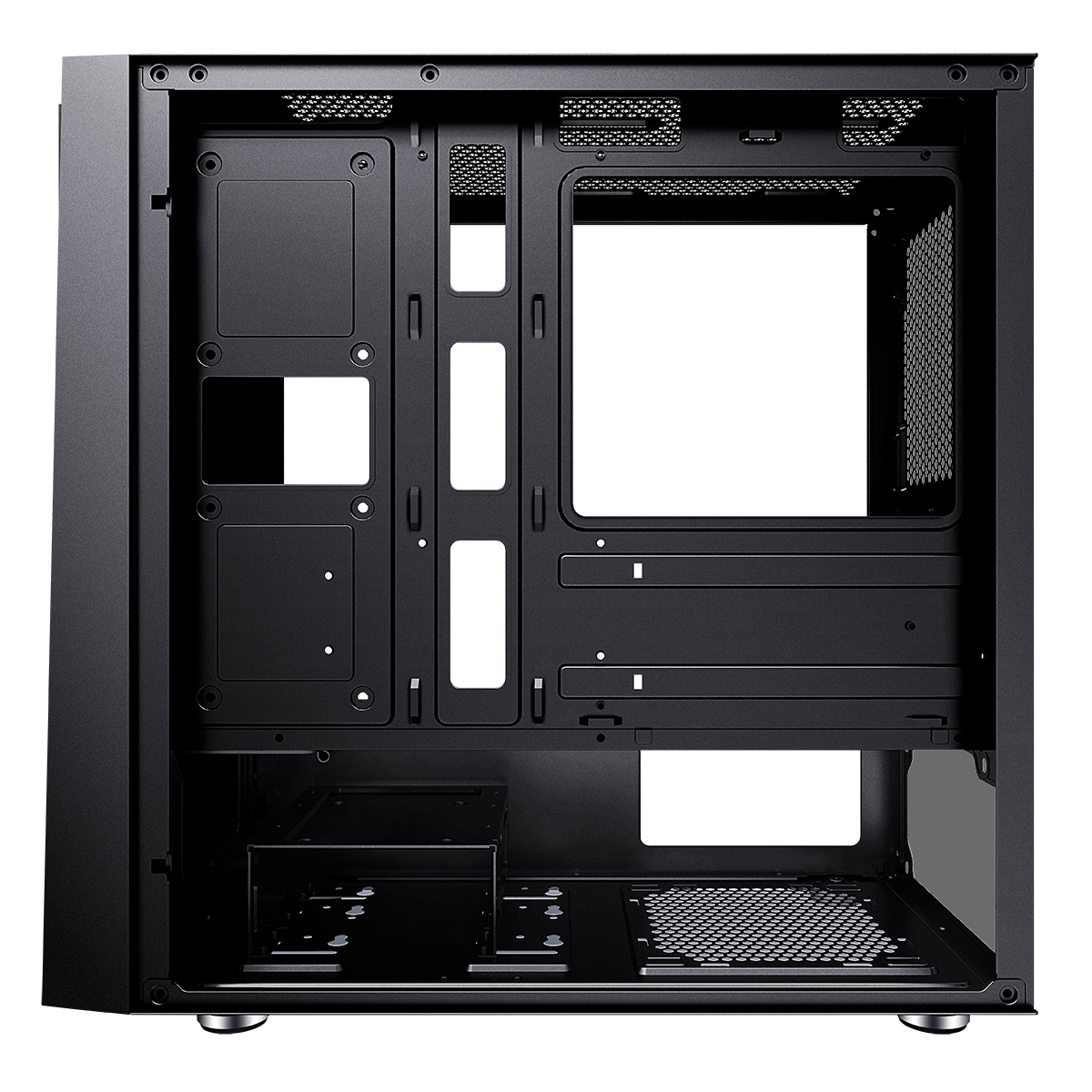

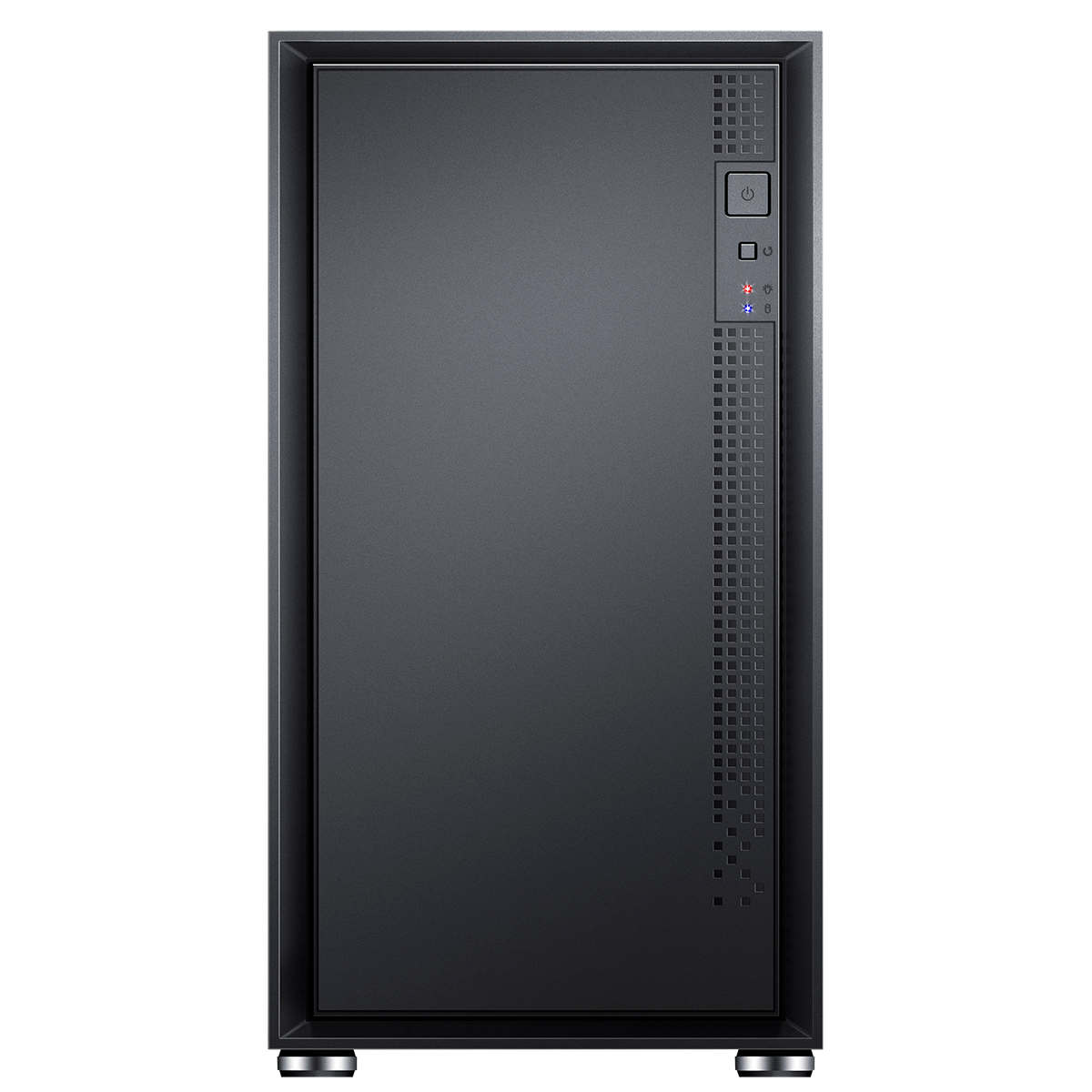

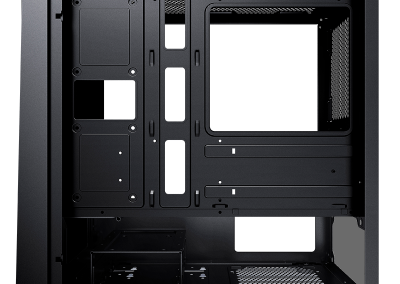

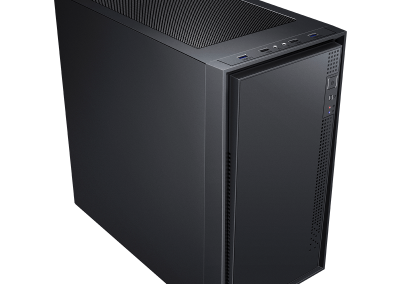

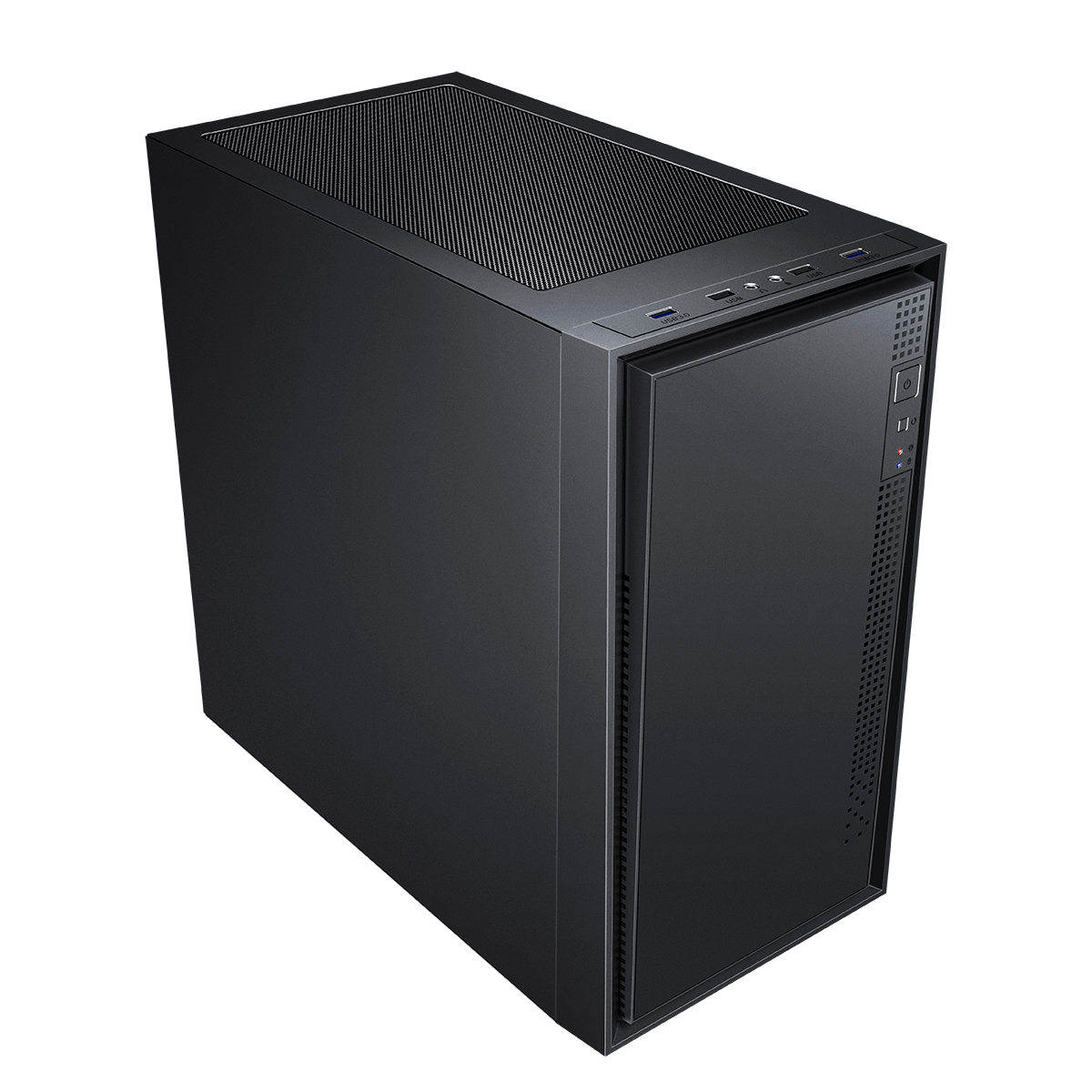

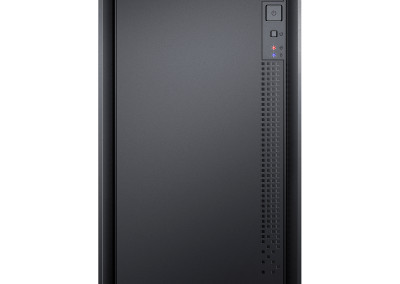

Model Number: SM-B
| Front Panel: | ABS + Mesh | |
| Left Side Panel: | Flat side cover | |
| Right Side Panel: | Flat side cover | |
| Chassis: | L Plate 0.7mm SPCC, Right Side panel:SPCC 0.6mm,Others 0.5mm, Black interior | |
| Front I/O | USB3.0 x 1 + USB2.0 x 2 + HD Audio | |
| PSU Position/Type | Bottom / ATX PSU | |
| Motherboard Type | Micro ATX, Mini ITX | |
| Reserved Fan Ports: (optional) | Top: 2 x 120mm | |
| Rear: 1 x 120mm | ||
| Front: 2 x 120mm | ||
| Drive Bays: | 5.25” exposed x 0 | |
| 3.5” exposed x 0 | ||
| 3.5” HDD x 2 | ||
| 2.5” SSD x 4 | ||
| PCI Expansion Slots: | 4 | |
| Chassis Size: | L400*W205*H380 MM | |
| N.W.: | 3.2KGS | |
| G.W.: | 4.2KGS | |
| Max.VGA Card: | 345mm | |
| Max. CPU Cooler: | 160mm | |
| Water cooling:(optional) | Top: Supports 120mm liquid cooler, supports 240mm liquid cooler (Short memory) | |
| Rear: Supports 120mm liquid cooler | ||
| Front: Supports 120mm/240mm liquid cooler | ||
| Cable Management: | 25 mm | |
